उत्पाद विवरण:
|
| रंग: | आपकी आवश्यकताओं के रूप में | रोलर सामग्री: | सीआर 12 |
|---|---|---|---|
| कटर सामग्री: | सीआर12 | कटर: | हाइड्रोलिक फिक्स्ड कटर या नॉनस्टॉप कटर |
| नियंत्रक: | मित्सुबिशी | सेवा करना: | जीवन भर विदेशों में सेवा देने के लिए उपलब्ध इंजीनियर्स |
| डिकॉइलर: | हाइड्रोलिक विस्तार प्रकार | द्रव्य का गाढ़ापन: | 1.5-3 मिमी |
Automatic Steel C And Z Purlin Roll Forming Machine,C Channel Truss Roll Forming Machine
| Item Name: |
change size c z channel metal purlin roll forming machine |
| Material: | GI |
| Line Speed | Up to 20m/min |
| Material Coil width | Per the design of product |
| Power | 380V 3phase or Per the client's request |
| Gram Weight: | Around 15 tons |
| Delivery time: | 90days |
| MOQ: | 1 Set |
| Delivery | FCL |
| Warranty | 1 year |
Machine feature:
We can make several dimensions in one machine.You can choose manul change size purlin machine.
Also ,you can choose auto change size machine.Just push a button ,it will change within seconds.
We also make c z purlion changeable machine.
Work folw:
Coil--Decoiler--guiding device-- roll forming --cutting-- run out table
Machine components:
| Decoiler | 1set (passive type and hydrualic expand one for choice) |
| Guiding | 1set |
| Rollformer | 1set(manul change and auto change for choice) |
| PLC | 1set |
| Hydraulic station | 1set |
| Cutter | 1set |
| Run out table | 1set or auto stacker |
| And so on |

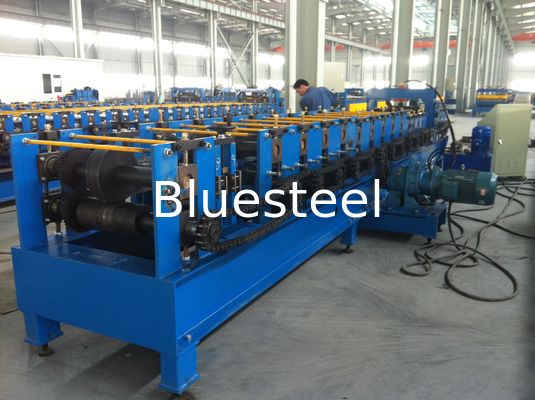

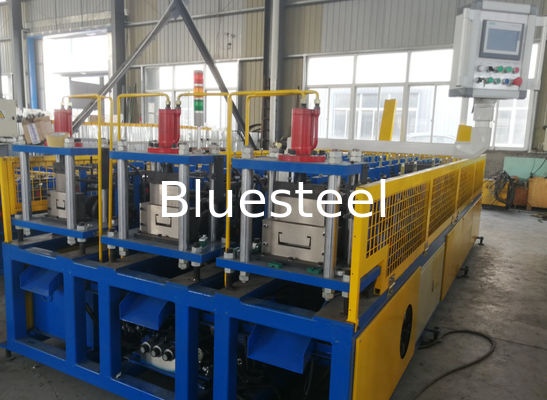

Machine overview:
We choose best machine parts to make sure mahine is durable and stable.Using big hydraulic station to make sure power supply.
Most common purlin sizes and types:

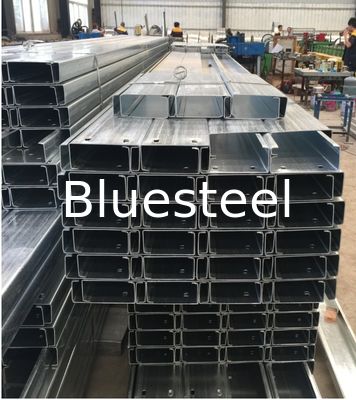

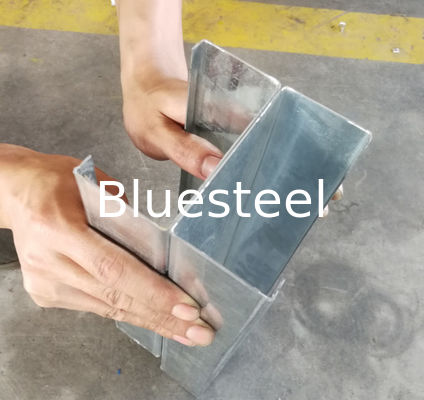

C Z purlin:
